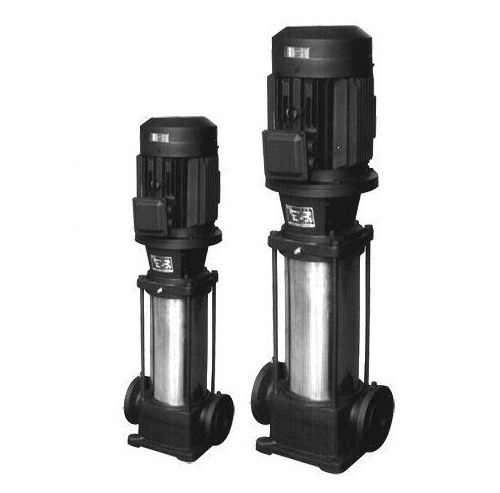

GDL型立式多級管道泵
|
| |
GDL型立式多級管道泵產品概述：
GDL型立式多級管道泵是根據本公司ISG型立式離心泵及DL型立式多級離心泵的優點而設計的。GDL型泵在結構上采用了立式、分段形式，泵的吸入口與排出口設計在下方成一字形，并采用了佳水力模型。泵的軸向力采用水力平衡方法解決，殘余軸向力由一個球軸承承受，因而運轉平穩、低噪音、占地面積小、裝修方便。外筒體用不銹鋼制造，外型美觀，特別適合于高層建筑多臺泵并聯使用，以減少單泵機組配帶功率，簡化電控設備。適用于高低層建筑的住宅、醫院、旅館、百貨大樓、辦公大樓等的消防、生活供水以及空調機組循環、冷卻水輸送等。
GDL型立式多級管道泵性能參數：
| GDL主要性能參數表 |
|
型號 |
流量(m3/h) |
揚程 |
吸程 |
電機功率 |
|
25GDL2-12*3 |
2 |
36 |
7.5 |
1.1 |
|
25GDL2-12*4 |
2 |
48 |
7.5 |
1.1 |
|
25GDL2-12*5 |
2 |
60 |
7.5 |
1.5 |
|
25GDL2-12*6 |
2 |
72 |
7.5 |
1.5 |
|
25GDL2-12*7 |
2 |
84 |
7.5 |
2.2 |
|
25GDL2-12*8 |
2 |
96 |
7.5 |
2.2 |
|
25GDL2-12*9 |
2 |
108 |
7.5 |
2.2 |
|
25GDL2-12*10 |
2 |
120 |
7.5 |
3 |
|
25GDL2-12*11 |
2 |
132 |
7.5 |
3 |
|
25GDL2-12*12 |
4 |
144 |
7.5 |
3 |
|
25GDL4-11*3 |
4 |
33 |
7.5 |
1.1 |
|
25GDL4-11*4 |
4 |
44 |
7.5 |
1.5 |
|
25GDL4-11*5 |
4 |
55 |
7.5 |
2.2 |
|
25GDL4-11*6 |
4 |
66 |
7.5 |
2.2 |
|
25GDL4-11*7 |
4 |
77 |
7.5 |
3 |
|
25GDL4-11*8 |
4 |
88 |
7.5 |
3 |
|
25GDL4-11*9 |
4 |
99 |
7.5 |
3 |
|
25GDL4-11*10 |
4 |
110 |
7.5 |
4 |
|
25GDL4-11*11 |
4 |
121 |
7.5 |
4 |
|
25GDL4-11*12 |
4 |
132 |
7.5 |
4 |
|
40GDL6-12*3 |
6 |
36 |
7.5 |
1.5 |
|
40GDL6-12*4 |
6 |
48 |
7.5 |
2.2 |
|
40GDL6-12*5 |
6 |
60 |
7.5 |
2.2 |
|
40GDL6-12*6 |
6 |
72 |
7.5 |
3 |
|
40GDL6-12*7 |
6 |
84 |
7.5 |
3 |
|
40GDL6-12*8 |
6 |
96 |
7.5 |
4 |
|
40GDL6-12*9 |
6 |
108 |
7.5 |
4 |
|
40GDL6-12*10 |
6 |
120 |
7.5 |
4 |
|
40GDL6-12*11 |
6 |
132 |
7.5 |
5.5 |
|
40GDL6-12*12 |
6 |
144 |
7.5 |
5.5 |
|
50GDL12-15*2 |
12 |
30 |
7 |
2.2 |
|
50GDL12-15*3 |
12 |
45 |
7 |
3 |
|
50GDL12-15*4 |
12 |
60 |
7 |
4 |
|
50GDL12-15*5 |
12 |
75 |
7 |
5.5 |
|
50GDL12-15*6 |
12 |
90 |
7 |
5.5 |
|
50GDL12-15*7 |
12 |
105 |
7 |
7.5 |
|
50GDL12-15*8 |
12 |
120 |
7 |
7.5 |
|
50GDL12-15*9 |
12 |
135 |
7 |
11 |
|
50GDL12-15*10 |
12 |
150 |
7 |
11 |
|
50GDL18-15*2 |
18 |
30 |
7 |
3 |
|
50GDL18-15*3 |
18 |
45 |
7 |
4 |
|
50GDL18-15*4 |
18 |
60 |
7 |
5.5 |
|
50GDL18-15*5 |
18 |
75 |
7 |
7.5 |
|
50GDL18-15*6 |
18 |
90 |
7 |
7.5 |
|
50GDL18-15*7 |
18 |
105 |
7 |
11 |
|
50GDL18-15*8 |
18 |
120 |
7 |
11 |
|
50GDL18-15*9 |
18 |
135 |
7 |
15 |
|
50GDL18-15*10 |
18 |
150 |
7 |
15 |
|
65GDL24-12*2 |
24 |
24 |
6 |
3 |
|
65GDL24-12*3 |
24 |
36 |
6 |
4 |
|
65GDL24-12*4 |
24 |
48 |
6 |
5.5 |
|
65GDL24-12*5 |
24 |
60 |
6 |
7.5 |
|
65GDL24-12*6 |
24 |
72 |
6 |
7.5 |
|
65GDL24-12*7 |
24 |
84 |
6 |
11 |
|
65GDL24-12*8 |
24 |
96 |
6 |
11 |
|
65GDL24-12*9 |
24 |
108 |
6 |
15 |
|
65GDL24-12*10 |
24 |
120 |
6 |
15 |
|
80GDL36-12*2 |
36 |
24 |
5.5 |
4 |
|
80GDL36-12*3 |
36 |
36 |
5.5 |
5.5 |
|
80GDL36-12*4 |
36 |
48 |
5.5 |
7.5 |
|
80GDL36-12*5 |
36 |
60 |
5.5 |
11 |
|
80GDL36-12*6 |
36 |
72 |
5.5 |
11 |
|
80GDL36-12*7 |
36 |
84 |
5.5 |
15 |
|
80GDL36-12*8 |
36 |
96 |
5.5 |
15 |
|
80GDL36-12*9 |
36 |
108 |
5.5 |
18.5 |
|
80GDL36-12*10 |
36 |
120 |
5.5 |
18.5 |
|
80GDL54-14*2 |
54 |
28 |
5 |
7.5 |
|
80GDL54-14*3 |
54 |
42 |
5 |
11 |
|
80GDL54-14*4 |
54 |
56 |
5 |
15 |
|
80GDL54-14*5 |
54 |
70 |
5 |
18.5 |
|
80GDL54-14*6 |
54 |
894 |
5 |
18.5 |
|
80GDL54-14*7 |
54 |
98 |
5 |
22 |
|
100GDL72-14*2 |
72 |
28 |
4.5 |
11 |
|
100GDL72-14*3 |
72 |
42 |
4.5 |
15 |
|
100GDL72-14*4 |
72 |
56 |
4.5 |
18.5 |
|
100GDL72-14*5 |
72 |
70 |
4.5 |
22 |
|
100GDL72-14*6 |
72 |
74 |
4.5 |
30 |
|
100GDL72-14*7 |
72 |
98 |
4.5 |
30 | |
|
 |
 |
|
