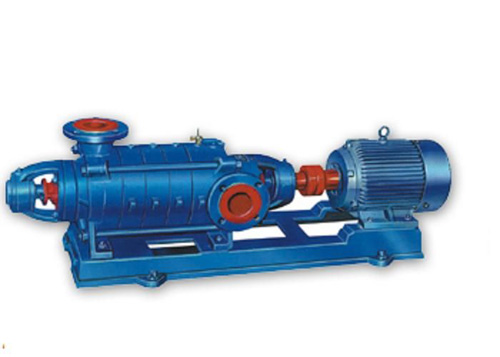

D型多級離心水泵（多級泵）
|
| |
產(chǎn)品概述：
D型泵系單吸多級分段式離心泵，供輸送清水及物理化學性質類似于水的液體之用。本泵揚程為H19-245.7m，流量為18至162m3/h。液體的高溫度不超過80℃，廣泛應用于礦山排水、工廠及城市給水之用。
性能參數(shù)：
| 型號 |
級數(shù) |
流量Q |
揚程H
（m） |
轉速
（r/min） |
功率N（KW） |
效率
（%） |
| （m3/h） |
（L/S） |
軸功率 |
電機功率 |
| D-50型 |
2 |
18 |
5 |
19 |
2950 |
1.5 |
2.2 |
55 |
| 3 |
28.5 |
2.25 |
3 |
55 |
| 4 |
38 |
3 |
4 |
55 |
| 5 |
47.5 |
3.75 |
5.5 |
62 |
| 6 |
57 |
4.5 |
5.5 |
62 |
| 7 |
66.5 |
5.25 |
7.5 |
62 |
| 8 |
76 |
6 |
7.5 |
62 |
| 9 |
85.5 |
6.75 |
7.5 |
62 |
| 10 |
95 |
7.5 |
11 |
62 |
| 11 |
104.5 |
8.25 |
11 |
62 |
| 12 |
114 |
9 |
11 |
62 |
| D-80型 |
2 |
32.4 |
9 |
22.7 |
2920 |
2.68 |
3 |
72 |
| 3 |
34.05 |
4.02 |
5.5 |
72 |
| 4 |
45.4 |
5.36 |
7.5 |
72 |
| 5 |
56.75 |
6.7 |
7.5 |
72 |
| 6 |
68.1 |
8.04 |
11 |
72 |
| 7 |
79.45 |
9.38 |
15 |
72 |
| 8 |
90.8 |
10.72 |
15 |
72 |
| 9 |
102.15 |
12.06 |
15 |
72 |
| 10 |
113.5 |
13.4 |
18.5 |
72 |
| 11 |
124.85 |
14.74 |
18.5 |
72 |
| 12 |
136.2 |
16.08 |
18.5 |
72 |
| D-100型 |
2 |
54 |
15 |
35.4 |
2940 |
7.2 |
11 |
71.5 |
| 3 |
52.8 |
10.8 |
15 |
71.5 |
| 4 |
70.4 |
14.4 |
18.5 |
71.5 |
| 5 |
88 |
18 |
22 |
71.5 |
| 6 |
105.6 |
21.6 |
30 |
71.5 |
| 7 |
123.2 |
25.2 |
37 |
71.5 |
| 8 |
140.8 |
28.8 |
37 |
71.5 |
| 9 |
158.4 |
32.4 |
45 |
71.5 |
| 10 |
176 |
36 |
45 |
71.5 |
| 11 |
193.6 |
39.6 |
55 |
71.5 |
| 12 |
211.2 |
43.2 |
55 |
71.5 |
| D-125型 |
2 |
108 |
30 |
40 |
2950 |
15.6 |
22 |
76 |
| 3 |
60 |
23.4 |
30 |
76 |
| 4 |
80 |
31.2 |
37 |
76 |
| 5 |
100 |
39 |
45 |
76 |
| 6 |
120 |
46.8 |
55 |
76 |
| 7 |
140 |
54.6 |
75 |
76 |
| 8 |
160 |
62.4 |
75 |
76 |
| 9 |
180 |
70.2 |
90 |
76 |
| 10 |
200 |
78 |
90 |
76 |
| 11 |
220 |
85.8 |
110 |
76 |
| 12 |
240 |
93.6 |
110 |
76 |
| D-150型 |
2 |
162 |
45 |
54.6 |
2950 |
31.46 |
37 |
76.6 |
| 3 |
81.9 |
47.19 |
55 |
76.6 |
| 4 |
109.2 |
62.92 |
75 |
76.6 |
| 5 |
136.5 |
78.65 |
90 |
76.6 |
| 6 |
163.8 |
94.38 |
110 |
76.6 |
| 7 |
191.1 |
110.11 |
132 |
76.6 |
| 8 |
218.4 |
125.84 |
160 |
76.6 |
| 9 |
245.7 |
141.57 |
160 |
76.6 | |
|
 |
 |
|
